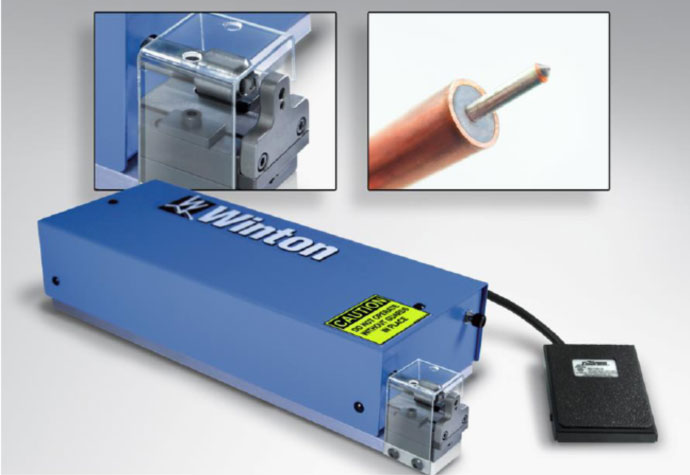

WP250 Semi-Rigid Coax Cable Pointing
半刚电缆倒角机

Model WP250 Semi-Rigid Coax Cable Pointing - Standard Equipment, Including:
标准配置

l Ability to adjust center conductor point length with fine thread adjustment (± .125”)
精细调节芯线倒角长度

lCompact cutter design allows for short center conductor length
满足超短芯线倒角

l Interchangeable guide design allows for locating different sizes of semi-rigid cable (guides not included)
可更换不同线径导块

l Custom guide designs available – consult factory
用户定制线径导块

l Foot pedal control provides for fast and accurate pointing
脚踏开关控制

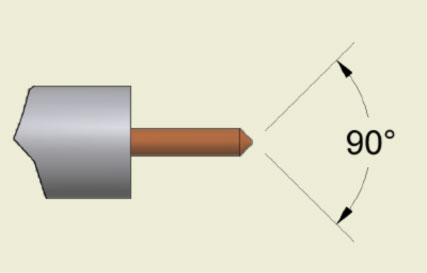

l High Speed AC motor imparts precision 90° included angle point on center conductor – lathe type cut
高速交流电机驱动

l One set of standard cutters included
倒角刀片


Features/Specifications: 性能特点及技术参数

lMinimum - Maximum cable size 线径：Ø.047 to Ø.250 semi-rigid coax cable

lWeight 重量：12 lbs (5.4 kg.)

lLength x Width x Height 外形尺寸：14.5” x 5.5” x 3.5” tall (368 x 140 x 89mm)

lElectrical Supply 电源：220 VAC, 60 Hz


Tooling/Options: 选配件

One (1) cable guide plate (customer to specify outside diameter of cable)
不同线径导轨

Custom cutter set to fit inside SMA connector – customer specified
用户定制工装，满足SMA端子芯线倒角

One (1) spare cutter set (one set includes four carbide cutters)
倒角刀片
