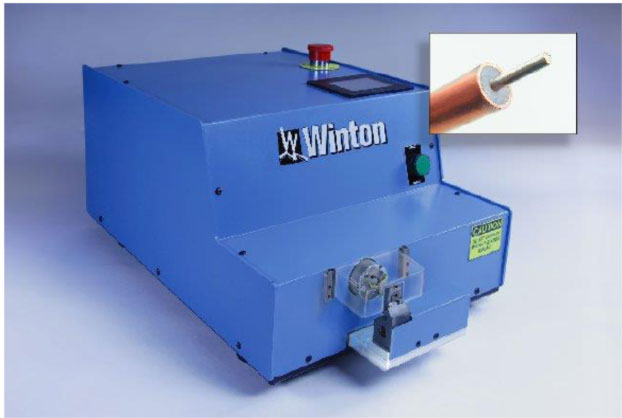

WS250 Semi-Rigid Coax Cable CNC Stripper
半钢电缆剥头机


Model WS250 Semi-Rigid Coax Cable CNC Strippe - Standard Equipment, Including:
标准配置

lSingle push button control provides for fast and accurate automatic multi-level stripping
单键触发剥头程序

lTouch screen for user interface
触摸式操作屏

lLathe type cutting process plunges to exact depth and retracts
精密车床切割方式，精确控制切割深度

lInterchangeable clamp guides for stripping different sizes of semi-rigid coax cable – maintains concentricity
可更换式电缆夹具，满足不同线径的半钢性电缆

lTwo (2) axis CNC lathe type cutting process used to remove outer jacket and insulator
双轴控制切割深度和剥头长度

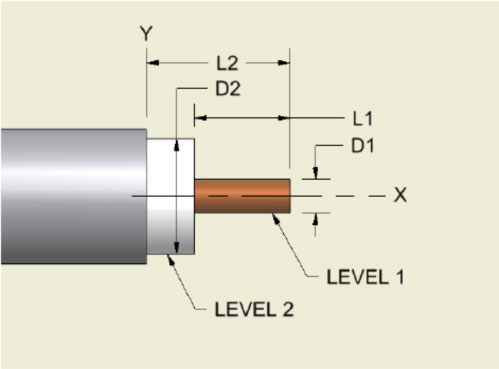

lProgrammable two level strip
可编程双层剥头控制

lProgrammable length of strips with on board graphics for ease of programming
图片显示剥头参数

lAll guards included
全线径覆盖


Features/Specifications:
性能特点及技术参数

lCable  Size 线径：Ø.031 to Ø.250 semi-rigid coax cable

lMaximum length of strip 最大剥头长度：0.400”

lWeight 重量：62 lbs

lSize L x W x H 外形尺寸：20.5” x 15.5” x 10”

lCutter blade 切割刀片：One (1) included

lElectrical Supply (customer specified) 电源：220 VAC, 50/60 Hz, single phase


Tooling/Options: 选配件
One (1) cable clamp die set (per cable’s outside diameter – customer to specify)
电缆线径夹持模块

One (1) spare cutter blade  切割剥头刀片

Three(3) level stripping capability  三层剥头功能

Foot Pedal (replaces cycle switch)  脚踏开关
